LN-200TV 200-Ton Vacuum Auto-Feed Compression Press
LINA LN-200TV 200-ton vacuum auto-feed & mold-open compression press provides 0–20 MPa servo regulation, 500×500 mm platens, ‑0.095 MPa vacuum degassing, and 3-minute mold change for bubble-free, high
TAG: 200 ton compression press,vacuum compression molding machine,auto-feed mold-open press,rubber vulcanizing press,LN-200TV,LINA Industrial
Description

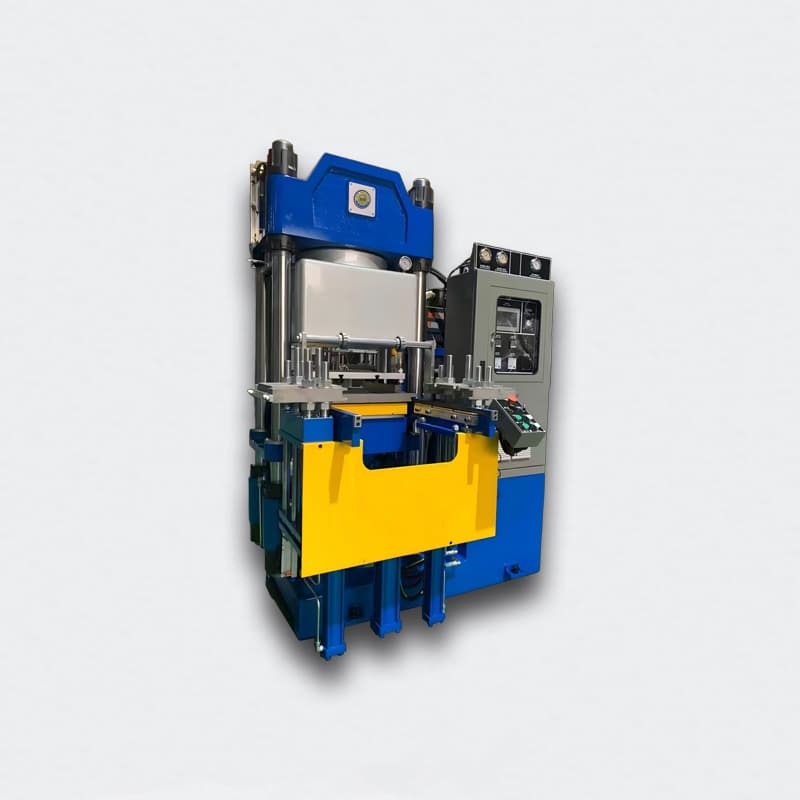

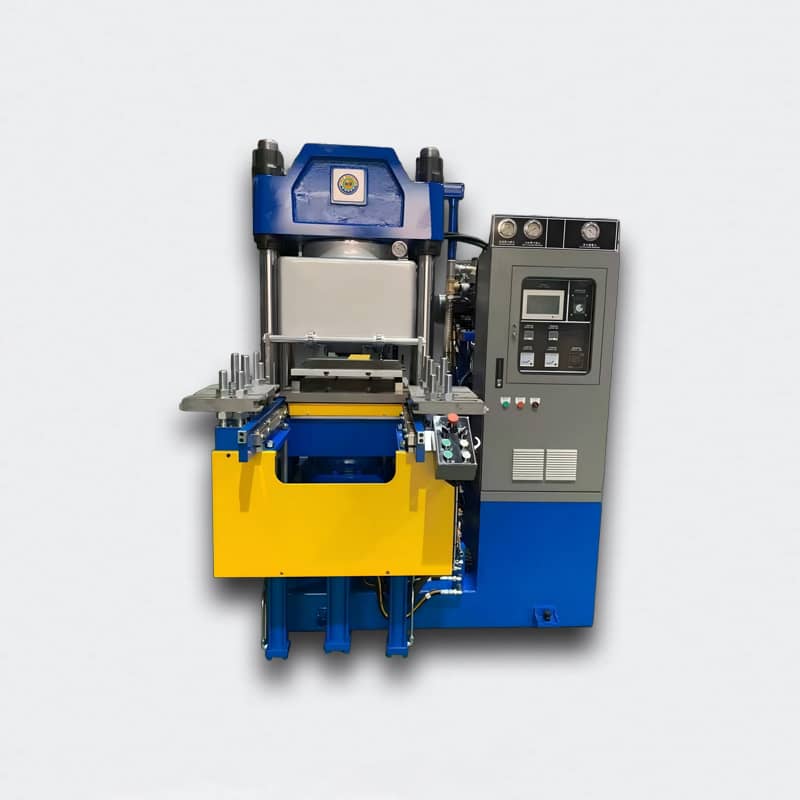

LN-200TV 200-Ton Vacuum Auto-Feed & Mold-Open Compression Press
1. Product Positioning
The LN-200TV is a four-column down-acting compression molding press rated at 200 tons. It integrates vacuum degassing, servo pressure regulation, and automatic mold opening/feeding in one machine. Change molds in 3 minutes and continuously produce bubble-free, high-precision rubber parts.
2. Core Features
- 2000 kN Servo Locking Force
Yaskawa servo pump + precision pressure sensor, stepless 0–20 MPa regulation, pressure fluctuation ≤ ±0.3 bar. - Vacuum Degassing System
Built-in vacuum chamber + Germany Busch pump, reaches ‑0.095 MPa within 30 s; programmable vacuum, cure & degas stages. - Auto Feed & Mold Opening
Servo slide table ±0.1 mm positioning; automatic part ejection and robot pick-up enable lights-out production. - Precision Temperature Control
500 × 500 mm mirror-chrome platens, zone PID control, uniformity ≤ ±1 °C; 25–250 °C (350 °C option). - Smart HMI
10″ touch screen, 200 recipe storage; optional MES interface for real-time OEE, energy & status upload.
| Clamping Force | 200 ton (2000 kN) |
| Platen Size | 500 × 500 mm (600 × 600 mm optional) |
| Max. Daylight / Stroke | 450 mm / 300 mm |
| Vacuum Level | ≤ ‑0.095 MPa |
| Temp. Uniformity | ≤ ±1 °C |
| Servo Motor Power | 11 kW |
| Footprint | 2.3 × 1.7 × 2.5 m |
| Weight | ≈ 3.8 t |
- Automotive oil seals, O-rings, anti-vibration pads
- 5G thermal pads, medical butyl stoppers
- FKM, AEM, HNBR and other specialty elastomers
- Dual-station shuttle table, cycle time ↓ 40 %
- Robot pick-up + vision inspection
- Explosion-proof Ex dⅡBT4
- High-temp 350 °C version
Built by Guangdong LINA Industrial Co., Ltd. 5 000 m² demo center in Houjie, Dongguan, offers free trials. Nationwide 48 h on-site service, 1-year warranty, lifetime technical upgrades.
