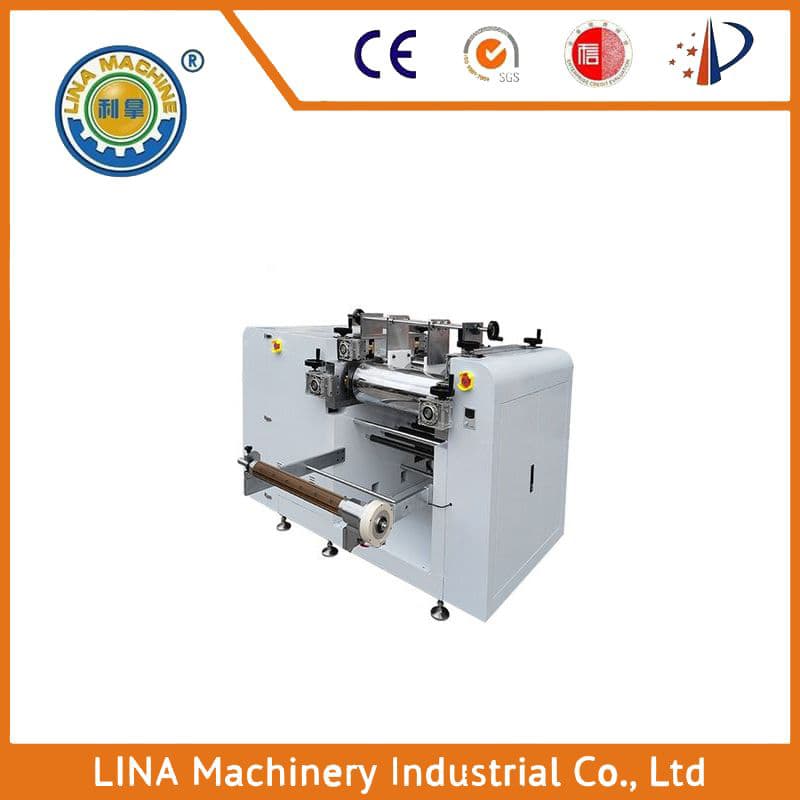

Five roll calendering machine, five roll silicone calendering machine, rubber five roll calendering machine

This machine has significant advantages over traditional rolling machines, such as producing high-quality products, energy saving, and labor saving.

Nicknames: Five roll calender, Five roll silicone calender, Rubber Five roll calender

purpose

1. Electronic industry:

Various thicknesses of PET+silicone film inside LED screens, suitable for LCD displays, LCD TVs, laptops, mobile phones, DV, DC, PDA, etc

2. Automotive industry:

Automotive engines and various silicone tubing products inside the car

3. Textile industry: Rolling and compounding production of silicone, fluororubber, and fabric.

feature

Basic feeding form: Integrated feeding base, easy to operate, small footprint.

Material release control system: using magnetic powder brakes combined with tension controllers to achieve automatic tension control and save labor.

Main transmission part: AC frequency conversion dedicated motor is used in combination with frequency converter as the rolling power transmission. The speed of each roller is independently controlled, which can adapt to the efficient production of products with different thicknesses, ensure product quality, and save 50-90% electricity.

Roller cooling device: using a rotary joint to introduce cooling water to maintain the working temperature of the roller, ensuring the service life and machine accuracy of the roller.

Automatic meter counting device: It adopts an automatic meter counting device and can be set in two sections to accurately control the rolling length.

Mechanical Specifications

Mechanical manufacturing width: 1100M-1800M

Maximum discharge diameter: 600mm

Inner diameter of discharge tube core: 1 "; -3"

Maximum roller distance: 6mm (can be increased to 15mm according to customer requirements)

Maximum output thickness: 5mm (can be increased to 10mm according to customer requirements)

Maximum operating speed: 15m/min

Film release accuracy error: ± 0.015mm
