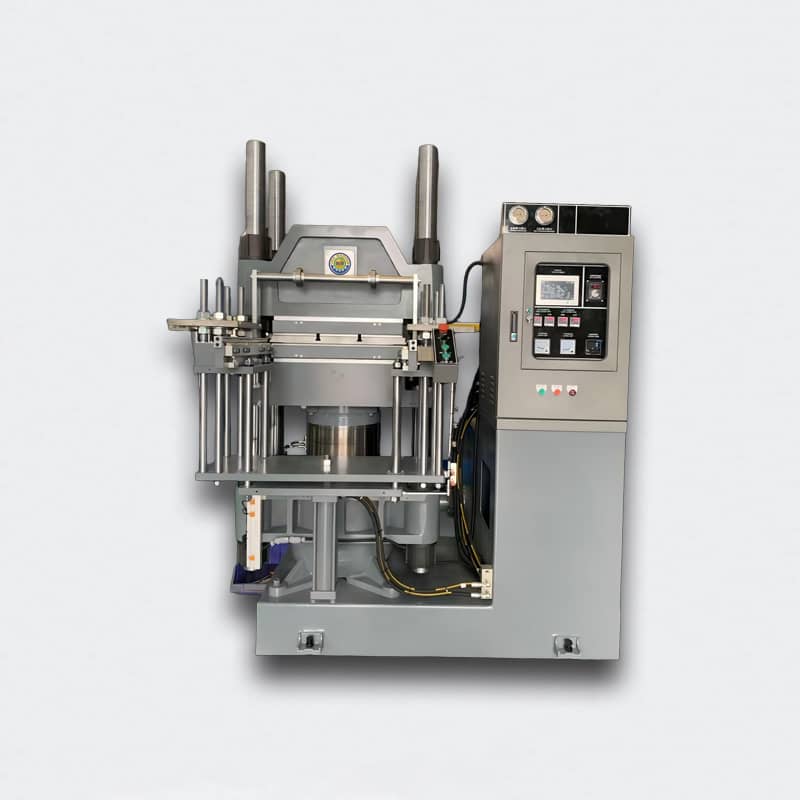

LN-250T 250-Ton Servo Vulcanizing Press
LINA LN-250T 250-ton intelligent servo vulcanizing press offers 0-25 MPa stepless pressure, 500×500 mm platens, ±1 °C uniformity and 3-min mold change for high-precision rubber parts like O-rings, sea
TAG: 250 ton vulcanizing press,servo vulcanizing press,rubber compression molding machine,quick mold change vulcanizer,LN-250T,LINA
Description
LINA LN-250T Intelligent Pressure-Regulating Vulcanizing Press
—Every rubber sheet is formed at the “golden pressure” in one shot
1. Product Positioning
The LN-250T is a four-column down-stroke vulcanizing press engineered by LINA for high-end rubber manufacturers. Integrating 2 500 kN clamping force, servo pressure regulation, PID accurate temperature control and one-click mold change, it offers stepless 0–25 MPa adjustment for flexible production of O-rings, oil seals, anti-vibration pads and thermal pads in small-batch, multi-specification scenarios.
2. Core Advantages
- 0–25 MPa Servo Pressure Regulation
Yaskawa servo pump + high-precision pressure sensor, closed-loop control, pressure fluctuation ≤ ±0.3 bar; ten-segment programmable pressure profiles for foaming, degassing, holding, secondary pressing and other complex processes. - 500 × 500 mm Large Platen Area
Mirror-chrome platens with flatness ≤ 0.02 mm/m; zone PID control, temperature uniformity ≤ ±1 °C. - One-Click Quick Mold Change
Pneumatic clamping + T-slot + locating pins; one operator can finish mold swap within 3 minutes; mold ID auto-recognition and recipe auto-loading eliminate human error. - Smart HMI
10″ color touch screen, 200 recipe memory, USB/Ethernet data export; optional MES interface for real-time cloud upload of OEE, energy and status data. - Energy & Safety
Servo pump consumes only 35 % of traditional fixed-displacement pumps, noise ≤ 68 dB(A); four-side safety light curtain + mechanical lock + hydraulic dual interlock, CE/UL compliant.
| Clamping Force | 250 ton (2 500 kN) |
| Pressure Range | 0–25 MPa stepless |
| Platen Size | 500 × 500 mm (600 × 600 mm optional) |
| Max. Temperature | 250 °C (350 °C high-temp option) |
| Motor Power | 11 kW servo system |
| Machine Footprint | 2.0 × 1.5 × 2.3 m |
| Weight | ≈ 4.2 t |
- Precision O-rings, oil seals, valve cores – multi-segment curves ensure thin flash and consistent dimensions.
- Automotive/rail anti-vibration pads – rapid high-pressure degassing, permanent compression set ≤ 15 %.
- Thermal pads & 5G heat-sink sheets – low-temp, high-pressure one-shot forming, thickness accuracy ±0.05 mm.
- Medical butyl stoppers – vacuum dome + adjustable pressure, GMP compliant.
- Dual-station shuttle table – 40 % cycle-time reduction.
- Vacuum dome + pump – ‑0.095 MPa for bubble-free parts.
- Auto-eject / slide-feed – lights-out factory with 6-axis robots.
- High-temp 350 °C version for FKM, AEM compounds.
• 5 000 m² demo center in Dongguan ready for free trials.
• 24 h response, 48 h on-site nationwide.
• 1-year full warranty & lifetime parts/process upgrades.
• IQ/OQ/PQ documentation for FDA/GMP audits.
