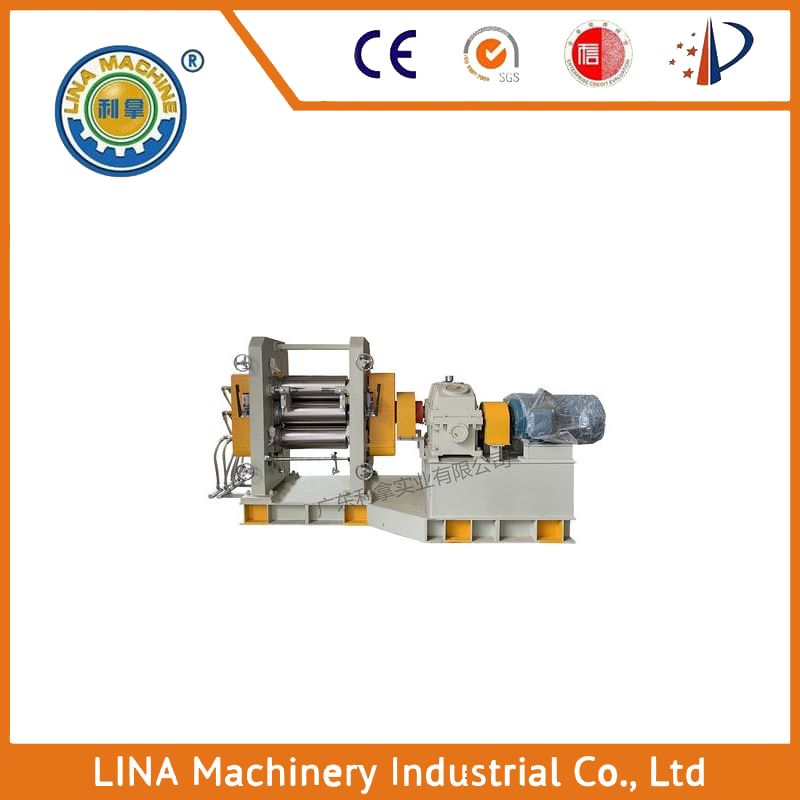

Fluororubber rolling machine
Purpose: The fluororubber rolling machine is suitable for precision rolling of fluororubber and is specially designed for fluororubber. Due to its increasing performance, fluororubber is being used in precision rolling machines for rolling products. However, problems such as rebound, bubbles, and uncontrollable precision during the rolling process have been troubling production enterprises. After in-depth research and multiple experiments, Lina Industrial has launched a specialized fluororubber rolling machine for mass production of fluororubber coils. Unwinding section: Two sets of substrate unwinding mechanisms that can simultaneously complete the winding process
TAG:
purpose
Fluororubber calendering machine is suitable for precision calendering of fluororubber and is specially designed for fluororubber.
feature
Fluororubber is increasingly being used for precision rolling products due to its performance, but problems such as rebound, bubbles, and uncontrollable accuracy during the rolling process have been troubling production enterprises. After in-depth research and multiple experiments, Guangdong Lina has developed a specialized fluororubber rolling machine for mass production of fluororubber coils.
Unwinding part: Two sets of substrate unwinding mechanisms, capable of simultaneously unwinding PET film/PTFE cloth and other substrates, meeting different customer needs.
Rolling part: Rolling roller spacing/roller design, able to meet different forming requirements of Baidu, high precision, and no bubbles.
Sulfurization section: The tunnel type vulcanization box is equipped with high-temperature resistant PTFE belts, stainless steel electric heating tubes or far-infrared quartz heating tubes with multiple options, as well as multi-stage combination designs to meet customers' various usage conditions. The insulation design meets customers' different process needs.
Cutting section: A professionally designed multifunctional slicer that completes various functions from peeling, bonding, trimming, to slicing or winding, saving space, reducing labor and turnover, and reducing yield.
Control System: A fully digital control system that displays all adjustable data such as tension, clearance, speed, and quantity in digital format, facilitating the establishment of SOP standardization and relying on the experience of operators.
Specifications
Mechanical manufacturing width: 0.63M/0.75M/0.9M/1.25M
Mechanical operating speed: 1-8M/Min
Inner diameter of coiling tube core: 3 inches;
Product thickness range: (0.2-2) mm
Thickness control accuracy: (0.2-2) ± 0.02mm
Accurate oven length: 2M/4M/6M
Accurate sizing power: 12KW/24KW/36KW
Slice control accuracy: (100-1000) ± 0.2mm
Option
Sealed kneading machine: using a rotary kneading oil refining method, electric heating, water cooling, to meet the efficient production needs of various formulas, various years, raw rubber, and recycled rubber.
Screw extruder: efficient speed ratio, uniform extrusion, pre molding, foam removal, stable output, high efficiency, high degree of intelligence.
X-Y slicer: According to the customer's delivery size requirements, an X-Y type half cut/full cut slicer is configured to achieve cutting of any combination size of X-Y for customers, with a minimum slicing size of 2 * 2mm.
Guangdong Lina focuses on the research and development of functional new material processes and equipment, providing comprehensive solutions from laboratory to mass production for new material manufacturing enterprises. If the above configuration cannot meet your needs, our company will develop processes and equipment for you free of charge until we provide you with a comprehensive solution for mass production.
