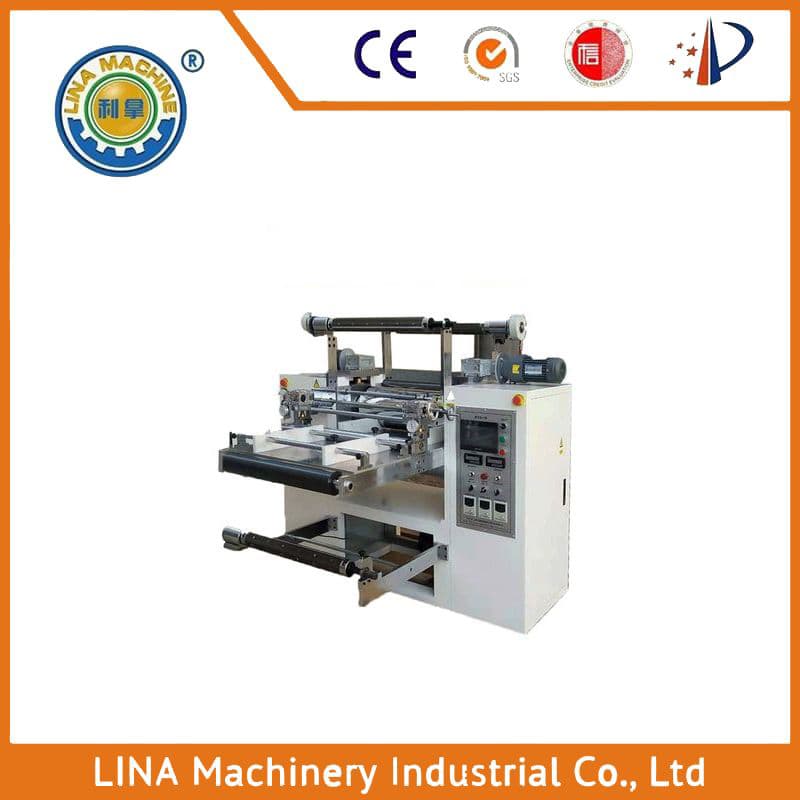

Solid state silicone rolling machine

Alias: Solid state silicone rolling machine, thermal conductive silicone sheet rolling machine, silicone pad rolling machine, KE951 rolling machine, conductive silicone sheet rolling machine

feature

Basic feeding form: Integrated feeding base, easy to operate, small footprint.

Material release control system: using magnetic powder brakes combined with tension controllers to achieve automatic tension control and save labor.

Main transmission part: AC frequency conversion dedicated motor is used in combination with frequency converter as the rolling power transmission. The speed of each roller is independently controlled, which can adapt to the efficient production of products with different thicknesses, ensure product quality, and save 50-90% electricity.

Roller cooling device: using a rotary joint to introduce cooling water to maintain the working temperature of the roller, ensuring the service life and machine accuracy of the roller.

Automatic meter counting device: It adopts an automatic meter counting device and can be set in two sections to accurately control the rolling length.

Mechanical Specifications

Mechanical manufacturing width: 750mm/1100mm/1450mm

Maximum discharge diameter: 600mm

Inner diameter of discharge tube core: 1 "; -3"

Maximum roller distance: 6mm (can be increased to 15mm according to customer requirements)

Maximum output thickness: 5mm (can be increased to 10mm according to customer requirements)

Maximum operating speed: 15m/min

Film release accuracy error: ± 0.015mm
