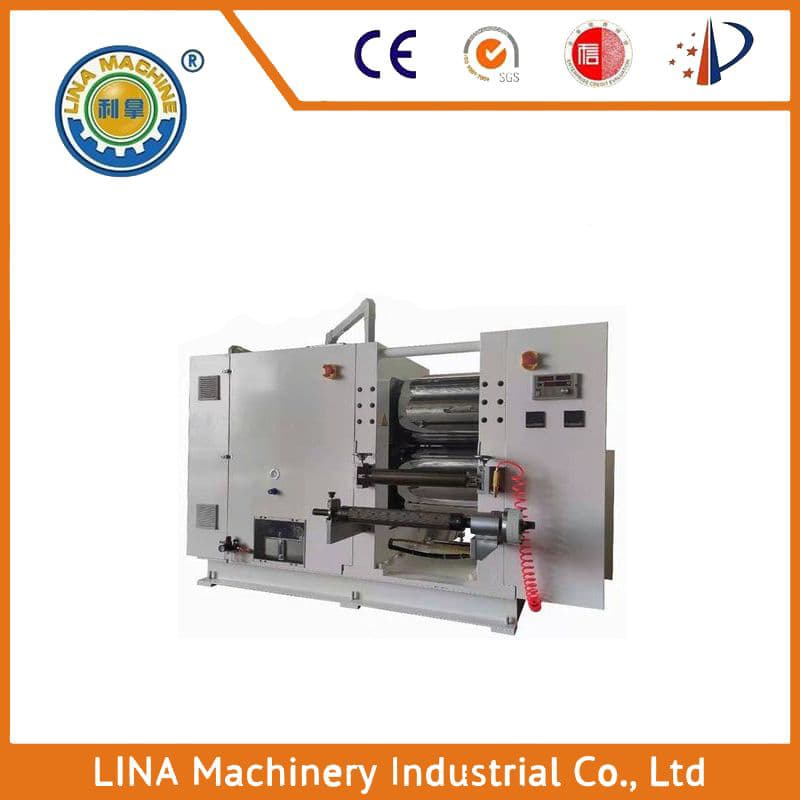

Polytetrafluoroethylene rolling machine

Alias: PTFE rolling machine, PTFE rolling machine, PTFE directional rolling machine

Purpose: The PTFE rolling machine is suitable for precision rolling of PTFE films.

feature

Basic feeding form: Integrated feeding base, easy to operate, small footprint.

Tension control system: using magnetic powder brakes combined with tension controllers to achieve automatic tension control and save labor.

Automatic correction system: using ultrasonic sensors in conjunction with a fully automatic correction controller to achieve automatic correction control, simple feeding operation, and avoid product rolling defects caused by uneven materials.

Main transmission part: Using a frequency conversion dedicated motor combined with a frequency converter as the rolling power transmission, the roller speed is easy to adjust, which can adapt to the efficient production of products with different thicknesses and ensure product quality.

Roller heating device: using hollow roller hot oil circulation heating to meet the production process temperature and improve product performance.

Automatic Meter Counting Device: Using a rotary encoder automatic meter counting device, it is easy to count the production quantity.

Mechanical Specifications

Mechanical manufacturing width: 450MM/550MM/650MM/1000MM

Maximum discharge diameter: 500mm

Inner diameter of discharge tube: 3 inches;

Maximum roller distance: 6mm

Maximum operating speed: 12.5m/min (or customized according to customer requirements)

Rolling material thickness: 0.05mm-0.5mm

Film thickness: 0.02mm-0.2mm

Film release accuracy error: ± 0.003mm
