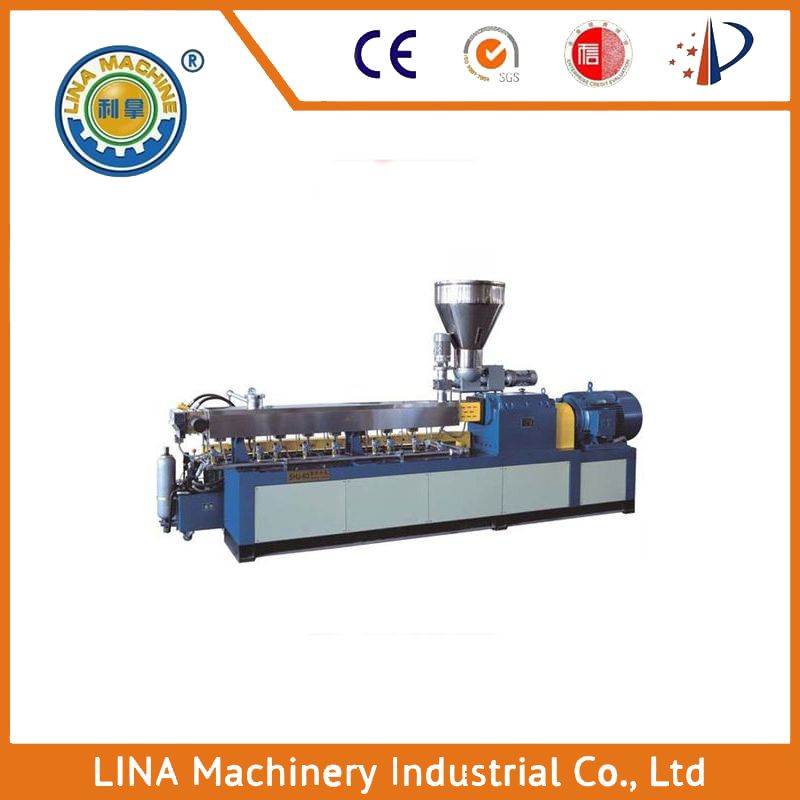

Twin screw extrusion granulator
The twin-screw extrusion granulator is mainly used for filling, blending, modifying, adding, oxidizing, processing polypropylene and superabsorbent resins of rubber and engineering resins. It can extrude degradable masterbatch, polyamide condensation, and polyurethane polymerization reaction; Granulation of carbon powder and magnetic powder, preparation of insulation materials, protective sleeves, low smoke halogen-free flame-retardant PVC cable materials, and various silane crosslinking materials for cables.
TAG:
The twin-screw extrusion granulator is selected from Guangdong Lina, a manufacturer of twin-screw extrusion granulators with nearly 20 years of experience. It has a processing base of 30000 square meters, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.
Twin screw extrusion granulator suitable products
The twin-screw extrusion granulator is mainly used for filling, blending, modifying, adding, oxidizing, processing polypropylene and superabsorbent resins of rubber and engineering resins. It can extrude degradable masterbatch, polyamide condensation, and polyurethane polymerization reaction; Granulation of carbon powder and magnetic powder, preparation of insulation materials, protective sleeves, low smoke halogen-free flame-retardant PVC cable materials, and various silane crosslinking materials for cables.
Characteristics of twin-screw extrusion granulator
Introduce advanced foreign technology. The main technical personnel and drawings come from Taiwan, Japan and other regions.
It has control functions such as whole unit process interlocking, sound and light fault alarm, and quick locking of fault points. All materials in contact with the unit are made of stainless steel, with attention to detail, completeness, reliability, energy saving, and durability.
The precision of the temperature control system ensures the sensitivity of materials to temperature.
Adopting the latest technology of free falling particle hood to solve the problem of particle agglomeration and cooling state, while maintaining minimal particle agglomeration.
The feeding system of the extruder adopts foreign technology to ensure and control the danger of personnel caused by the uncontrolled pressure of the die head bursting.
Especially the use of foreign technology for the material barrel and mold head to ensure and control the danger to personnel caused by uncontrollable pressure and burst resistance of the mold head.
Technical Specifications
model Model | LN-S-20 | LN-S-36 | LN-S-50 | LN-S-65 | LN-S-75 | LN-S-85 | LN-S-95 |
Screw diameter（mm） Screw diameter | 21.7 | 35.6 | 50.5 | 62.4 | 71 | 81 | 93 |
screw length-to-diameter ratio L/D | 28-40 | 28-52 | 28-60 | 28-61 | 28-62 | 28-63 | 28-64 |
Screw torque（r/min） Screw torque | 600 | 600 | 400/500/600 | 400/500/600 | 400/500/600 | 400/500/600 | 400/500/600 |
Torque level（T/A³） | 5.2 | 5.1 | 5.2 | 6.1 | 5.6 | 8.2 | 8.9 |
Motor power（KW） Motor Power | 4 | 11/15 | 45/55/75 | 55/75/90 | 90/110/132 | 160/220/280 | 250/280/315 |
External dimensions（mm） Dimensions | Different from the actual feeding, cutting and other methods The actual dimension will be different due to different feeding and cutting methods. | ||||||
